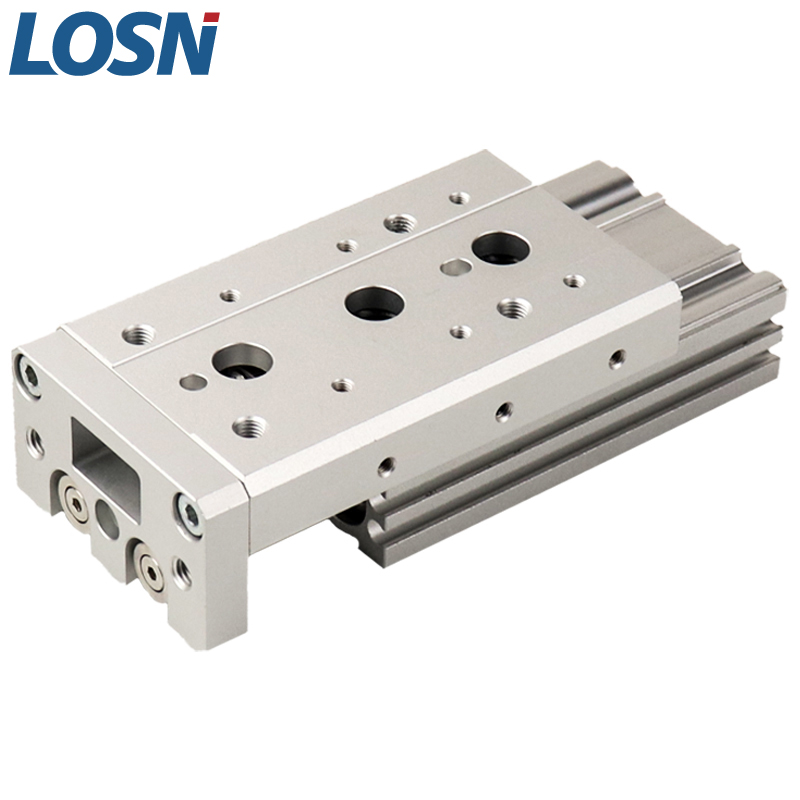

SMC Type Air Slide Table MXS

Model NO.: MXS

・Integrated with a worktable in a compact manner
・An air slide table that is ideal for precision assembly work
・High rigidity and high accuracy
・Smooth movement without looseness has been achieved
　through the adoption of a cross roller guide.
・Compact and lightweight
・Provides twice the output of the existing cylinder through
　the adoption of the dual rod function

Quantity:

Product Description

Overview
MXS Series precision pneumatic slide tables are designed for precision assembly applications. Typical applications include positioning pallets on a conveyor and providing movement on the Z-axis in pick and place operations. A wide variety of options are available for this series including stroke adjusters, shock absorbers, buffer mechanisms, end lock and axial piping.

Compatible auto switches include D-A90, D-A93, D-A96, D-F9N, D-F9P, D-F9B, D-F9NW, D-F9PW and D-F9BW among others. Stroke Adjusters may be ordered as an accessory as well: MXS-(AS or AT) (bore size) For example, use part# MXS-AS6 for a extension end stroke adjuster for the 6mm bore slide tables.

Features:

Work table and air cylinder are integrated compactly
Ideal for precise assembly
Housing grooves on body for flush mounting of auto switches
Dual piston rod ensures twice the thrust of the current cylinder
Mounting possible in 3 directions (side - body tapped, side - thru hole, axial - body tapped)

Technical Specification

*For oiling, please use turbine No.1 oil ISO VG32.

Model	MXS 6	MXS 8	MXS 12	MXS 16	MXS 20	MXS 25

Bore Size(mm)	φ6×2 (Equivalentφ8)	φ8×2 (Equivalentφ11)	φ12×2 (Equivalentφ17)	φ16×2 (Equivalentφ22)	φ20×2 (Equivalentφ28)	φ25×2 （Equivalentφ35）
Working Fluid	Air
Acting Mode	Double acting
Max.Working Pressure	0.7MPa
Min.Working Pressure	0.15MPa
Fluid Temperature	-10~+60℃ (No freezing)
Piston Speed	50~500mm/s
Buffering	Rubber cushion(Standard)
Magnetic Switch Selection	D-A93
*Lubrication	No need
Port Size	M3x0.8	M5x0.8			Rc1/8

Order Code

Combination of cylinder and table

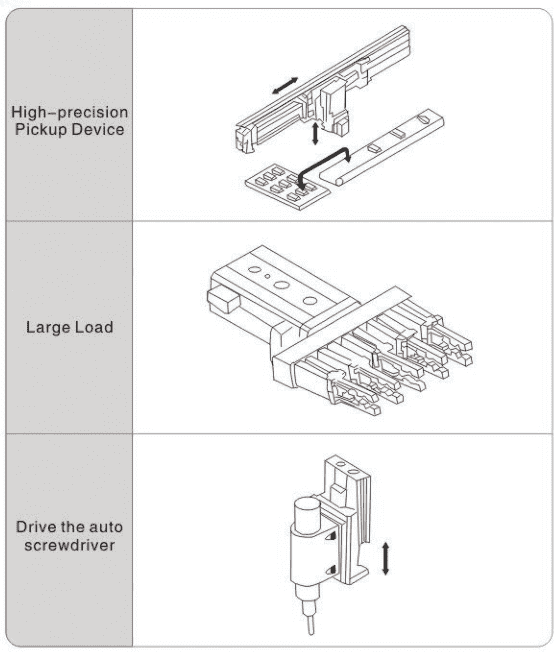

Application

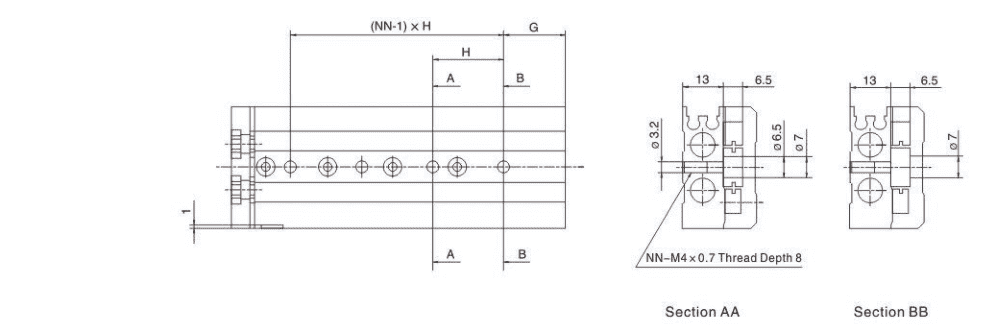

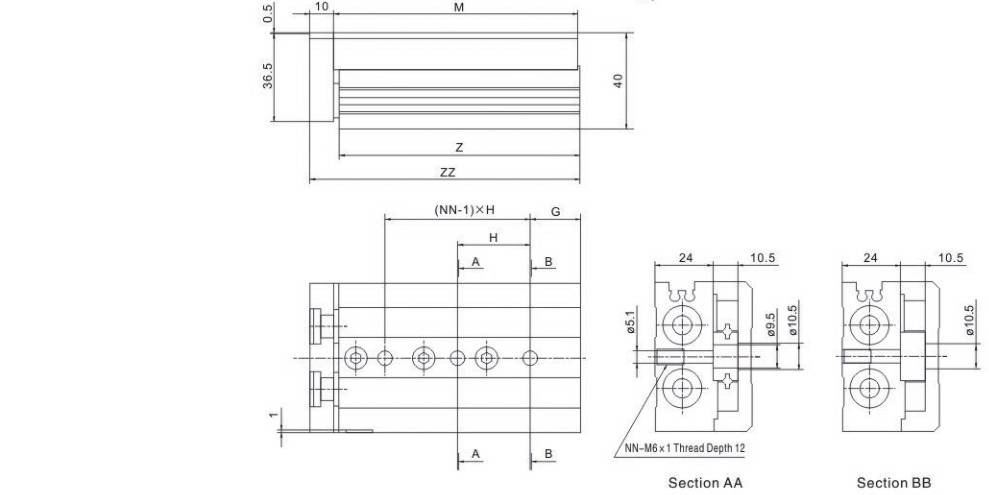

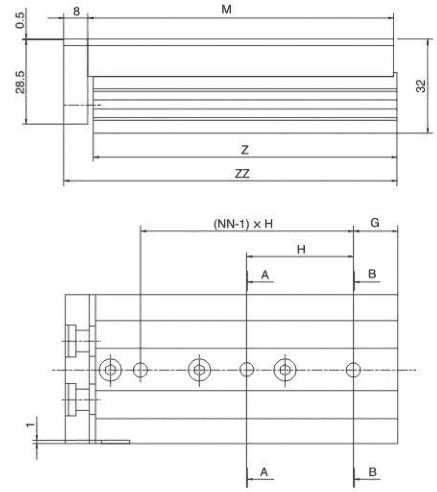

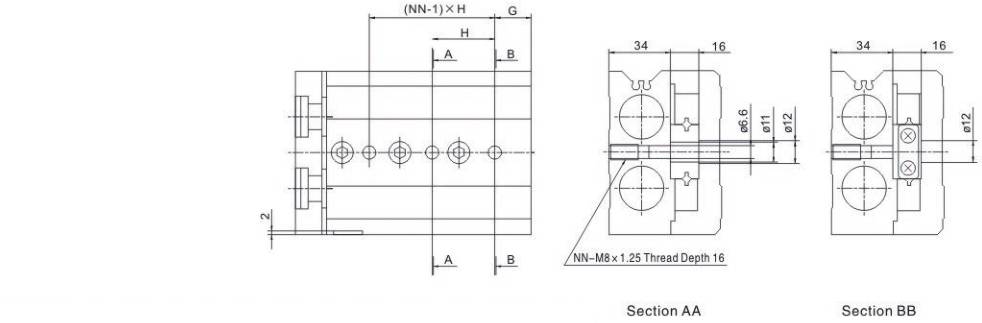

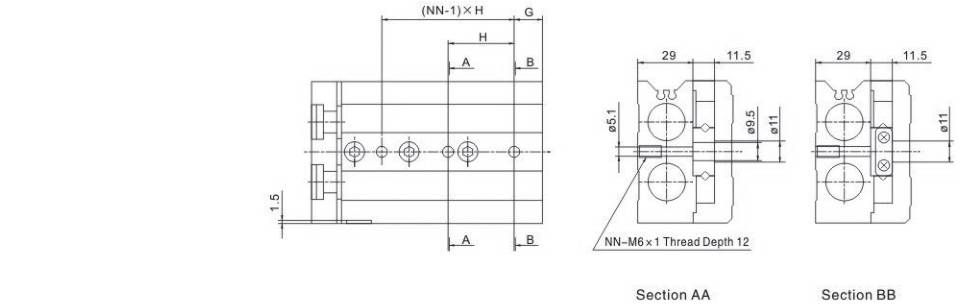

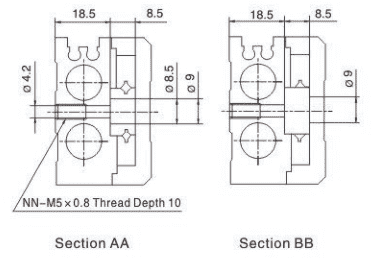

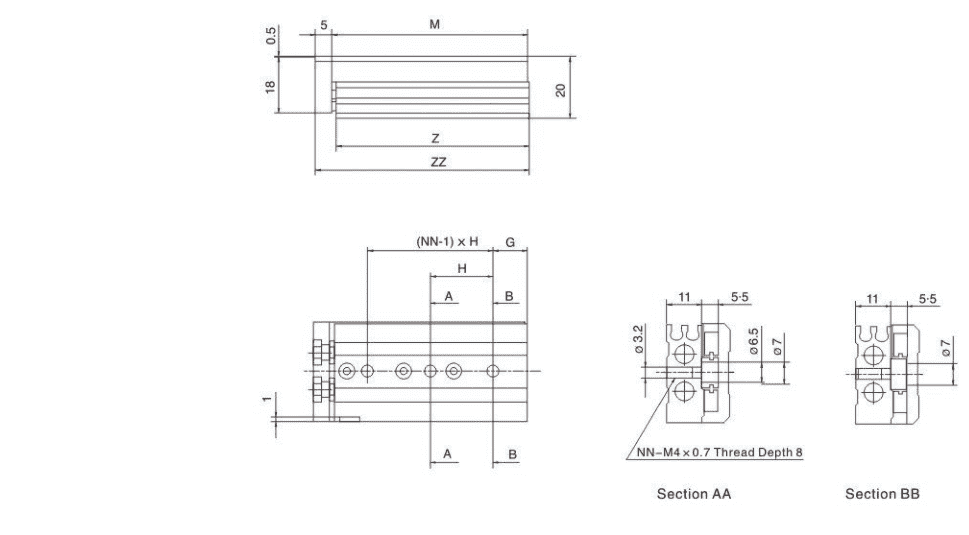

Dimension

Model	F	N	G	H	NN	I	J	K	M	Z	ZZ

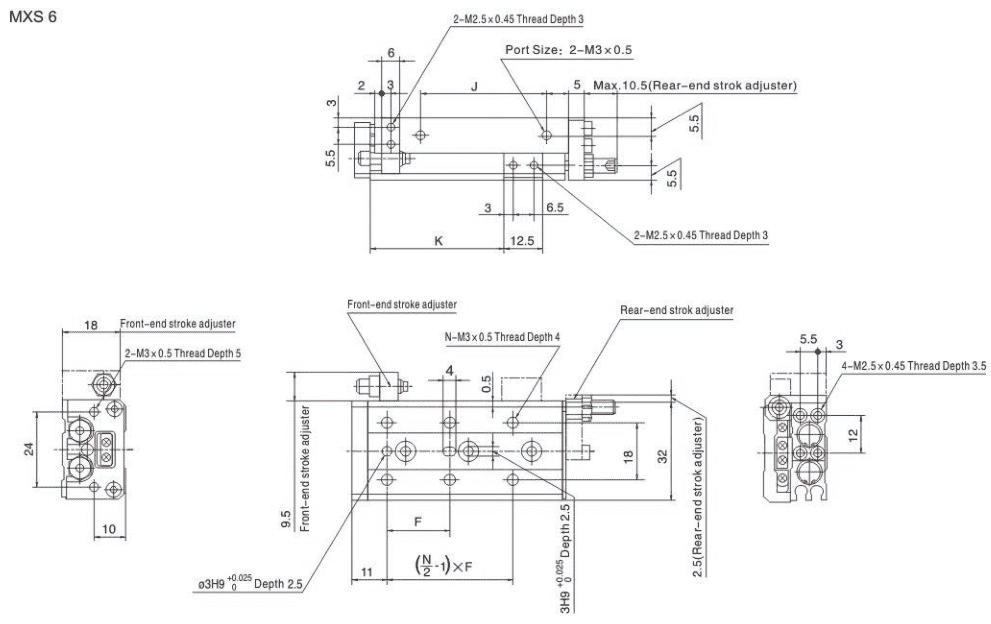

MXS6-10	20	4	6	25	2	10	17	22.5	42	41.5	48
MXS6-20	30	4	6	35	2	10	27	32.5	52	51.5	58
MXS6-30	20	6	11	20	3	7	40	42.5	62	61.5	68
MXS6-40	28	6	13	30	3	19	50	52.5	84	83.5	90
MXS6-50	38	6	17	24	4	25	60	62.5	100	99.5	106

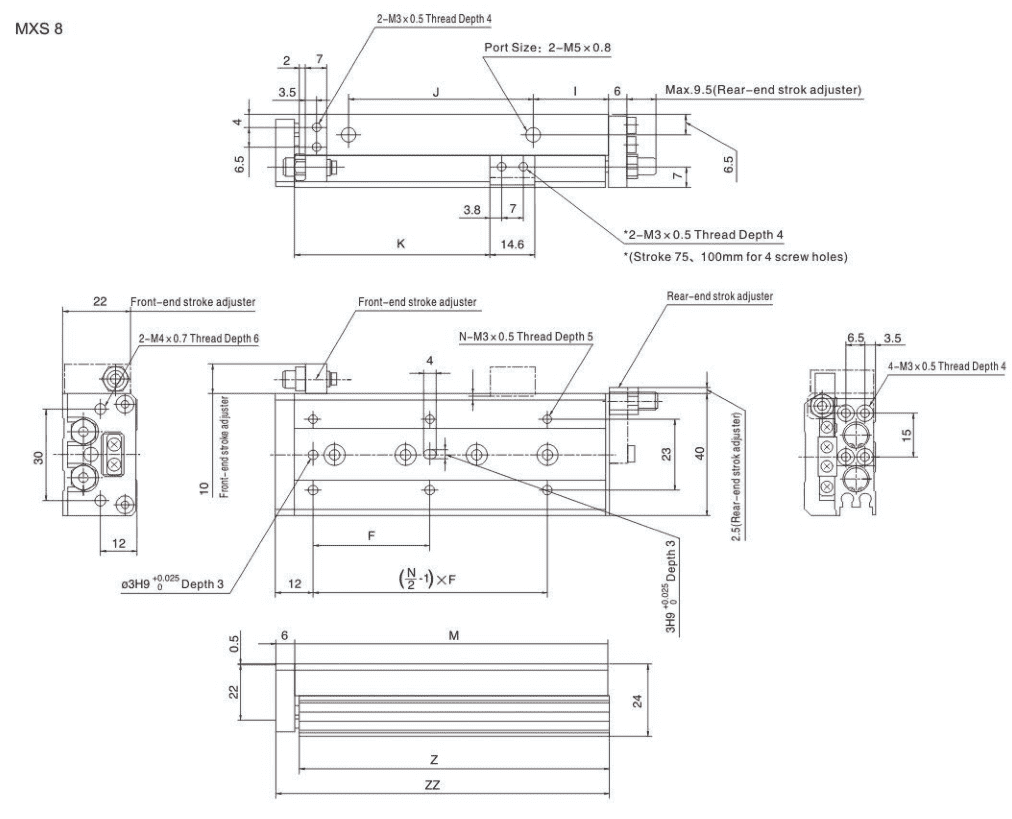

Model	F	N	G	H	NN	I	J	K	M	Z	ZZ
MXS8-10	25	4	9	28	2	13	19.5	23.5	49	48.5	56
MXS8-20	25	4	12	30	2	8.5	29	33.5	54	53.5	61
MXS8-30	40	4	13	20	3	9.5	39	43.5	65	64.5	72
MXS8-40	50	4	15	28	3	10.5	56	53.5	83	82.5	90
MXS8-50	38	6	20	23	4	24.5	60	63.5	101	100.5	108
MXS8-75	50	6	27	28	5	38.5	96	88.5	151	150.5	158

Model	F	N	G	H	NN	I	J	K	M	Z	ZZ

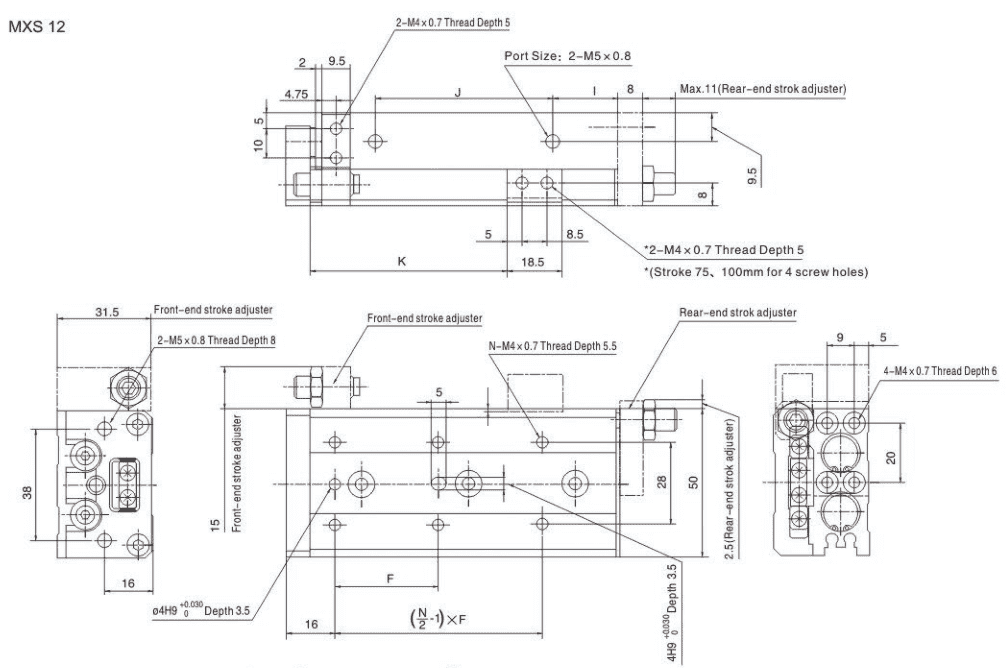

MXS 12-10	35	4	15	40	2	10	40	26.5	71	70	80
MXS 12-20	35	4	15	40	2	10	40	36.5	71	70	80
MXS 12-30	35	4	15	40	2	10	40	46.5	71	70	80
MXS 12-40	50	4	17	25	3	10	52	56.5	83	82	92
MXS 12-50	35	6	15	36	3	22	60	66.5	103	102	112
MXS12-75	55	6	25	36	4	43	85	91.5	149	148	158
MXS12-100	65	6	35	38	5	52	130	116.5	203	202	212

Model	F	N	G	H	NN	I	J	K	M	Z	ZZ

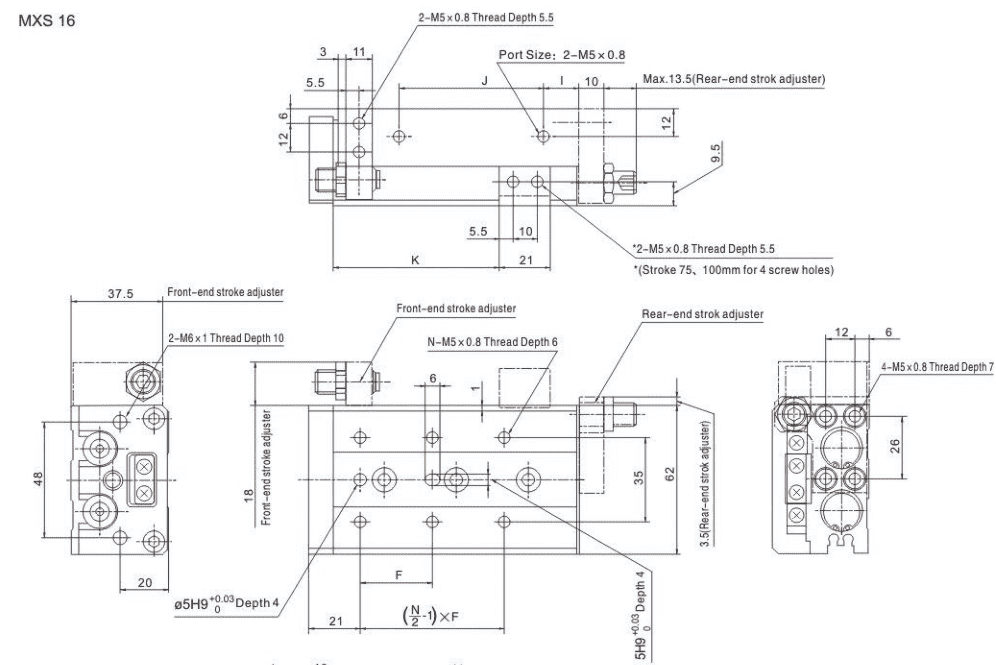

MXS16-10	35	4	16	40	2	10	40	29	76	75	87
MXS16-20	35	4	16	40	2	10	40	39	76	75	87
MXS 16-30	35	4	16	40	2	10	40	49	76	75	87
MXS 16-40	40	4	16	50	2	10	50	59	86	85	97
MXS16-50	30	6	21	30	3	15	60	69	101	100	112
MXS16-75	55	6	26	35	4	40	85	94	151	150	162
MXS16-100	65	6	39	35	5	55	118	119	199	198	210
MXS16-125	70	8	19	35	7	68	155	144	249	248	260

Model	F	FF	N	G	H	NN	I	J	K	M	Z	ZZ

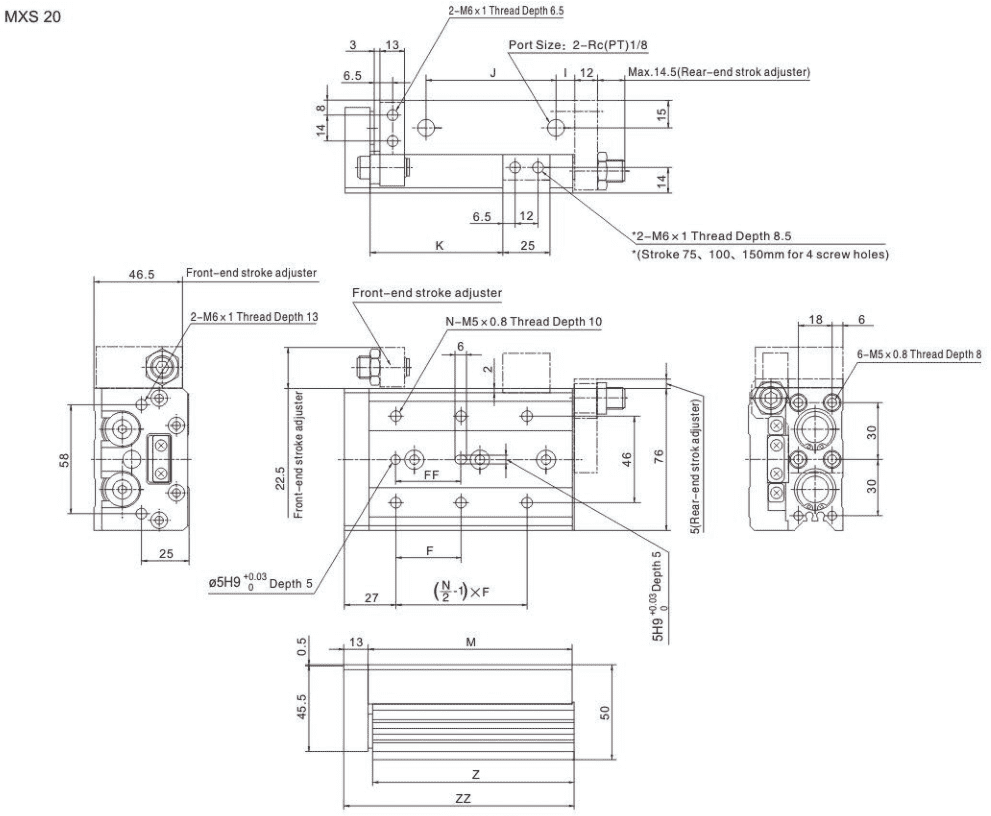

MXS20-10	50	40	4	15	45	2	10	44	31	83	81.5	97
MXS20-20	50	40	4	15	45	2	10	44	41	83	81.5	97
MXS20-30	50	40	4	15	45	2	10	44	51	83	81.5	97
MXS20-40	60	50	4	15	55	2	10	54	61	93	91.5	107
MXS20-50	35	35	6	15	35	3	10	69	71	108	106.5	122
MXS20-75	60	60	6	19	35	4	10	108	96	147	145.5	161
MXS20-100	70	70	6	37	35	5	58	113	121	200	198.5	214
MXS20-125	70	70	8	41	38	6	70	155	146	254	252.5	268
MXS20-150	80	80	8	19	44	7	87	JI 90	171	306	304.5	320

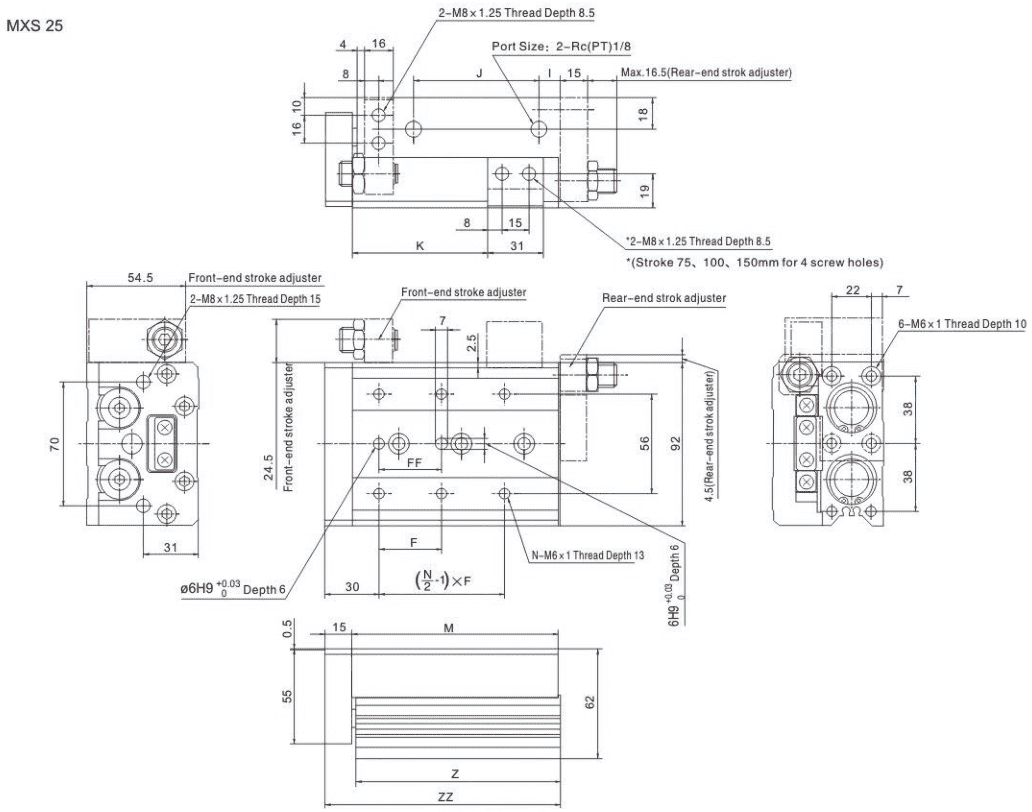

Model	F	FF	N	G	H	NN	I	J	K	M	Z	ZZ
MXS25-10	50	40	4	22	45	2	12	47	35	92	90.5	108
MXS25-20	50	40	4	22	45	2	12	47	45	92	90.5	108
MXS25-30	50	40	4	22	45	2	12	47	55	92	90.5	108
MXS25-40	60	50	4	22	55	2	12	57	65	102	100.5	118
MXS25-50	35	35	6	20	35	3	12	70	75	115	113.5	131
MXS25-75	60	60	6	26	35	4	33	90	100	156	154.5	172
MXS25-100	70	70	6	32	35	5	50	114	125	197	195.5	213
MXS25-125	75	75	8	40	38	6	67	155	150	255	253.5	271
MXS25-150	80	80	8	30	40	7	82	180	175	295	293.5	311
