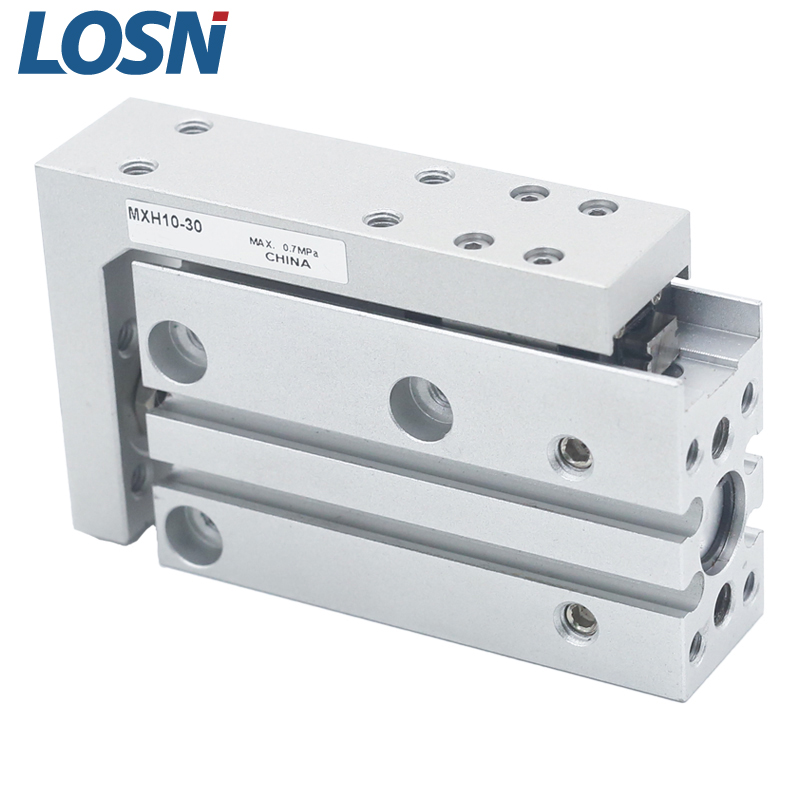

Install the linear guide bearing to improve the non-rotation accuracy of piston rod
Standard type is with built-in magnet, so the magnetic switch can be installed

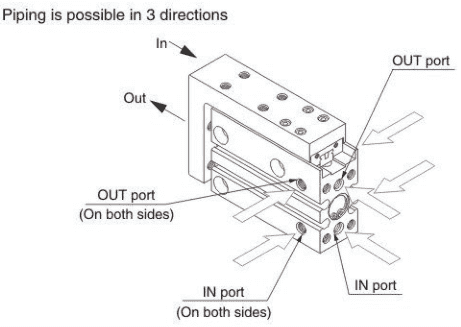

Can be connected to the air supply from three sides.
Magnetic switch can be intalled at both sides.
Standard type is with rubber bumpers at both ends.
Torque can be six times than MXU series cylinder.
Order Code
Technical Specification
Bore Size(mm) | 6 | 6 | 16 | 20 |
Guide Bearing Width | 5 | 7 | 9 | 12 |
Working Fluid | Air | |||
Acting Mode | Double acting | |||
Min.Working Pressure | 0.15MPa | 0.06MPa | 0.05Mpa | |
Max.Working Pressure | 0.07MPa | |||
Fluid Temperature | Without Magnetic Switch: -10~+7O℃ With Magnetic Switch: 10~+60℃（No freezing） | |||
Piston Speed | 50~500 mm/s | |||
Allow Momentum J | 0.0125 | 0.025 | 0.05 | 0.1 |
*Lubrication | No need | |||
Buffering | With rubber bumpers at both ends | |||
Stroke Tolerance(mm) | +1.00 | |||
Magnetic Switch Selection | D-A93 | |||
Port Size | M5x0.8 | |||
lf needs oil.please use turbine No.1 oil ISO VG32.
Stroke/Magnetic Switch Selection
| Bore Size(mm) | Standard Stroke(mm) | Direct Mount Magenetic Switch |
| 6 | 5,10,15,20,25,30,40,50,60 | A93(V) |
| 10 | A96(V) A9B(V) | |
| 16 | M9N(V) F9NW | |
| 20 | M9P(V) |
Note) magnetic switch specifications and features ponder refer magnetic switch series, at the end of the magnetic switch models, with a wire length mark: Nil
-0.5m, L-3m, Z-5m, example: A93L

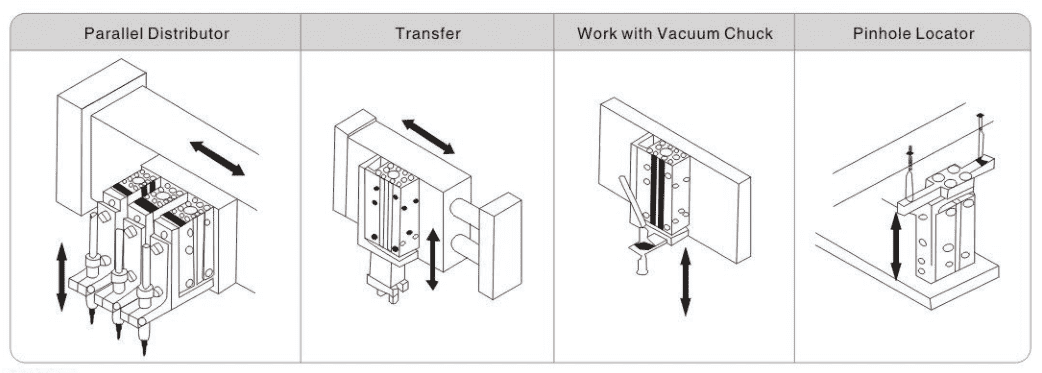

Application

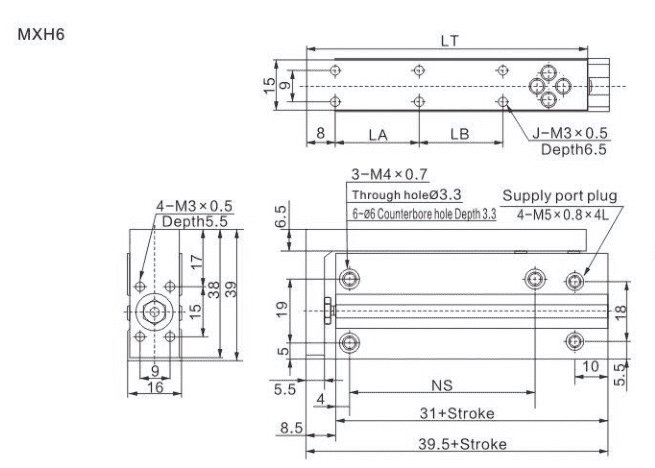

Stroke (mm) | J | LA | LB | LT | NS |
5 | 4 | 10 | - | 42 | 14 |
10 | 4 | 10 | - | 42 | 14 |
15 | 4 | 20 | - | 52 | 24 |
20 | 4 | 20 | - | 52 | 24 |
25 | 4 | 30 | - | 62 | 30 |
30 | 4 | 30 | - | 62 | 30 |
40 | 6 | 20 | 20 | 72 | 45 |
50 | 6 | 25 | 25 | 82 | 55 |
60 | 6 | 30 | 30 | 92 | 60 |

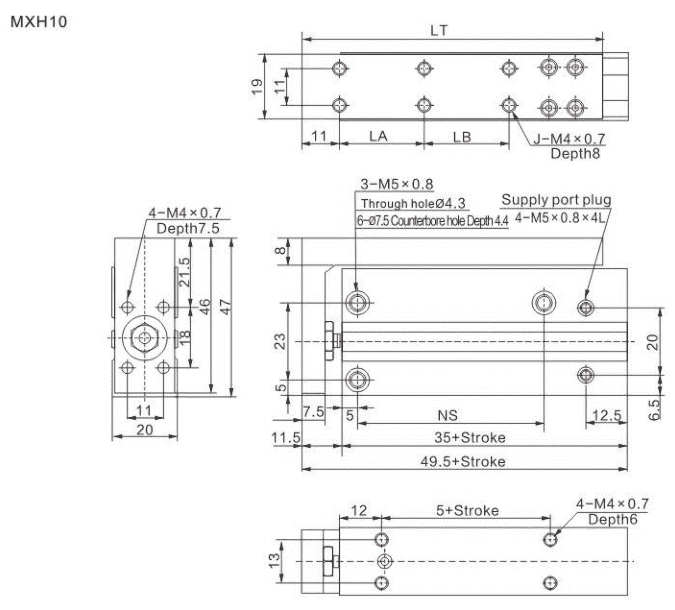

Stroke(mm) | J | LA | LB | LT | NS |
5 | 4 | 10 | - | 49 | 14 |
10 | 4 | 10 | - | 49 | 14 |
15 | 4 | 20 | - | 59 | 24 |
20 | 4 | 20 | - | 59 | 24 |
25 | 4 | 30 | - | 69 | 30 |
30 | 4 | 30 | - | 69 | 30 |
40 | 6 | 20 | 20 | 79 | 45 |
50 | 6 | 25 | 25 | 89 | 55 |
6° | 6 | 30 | 30 | 99 | 60 |

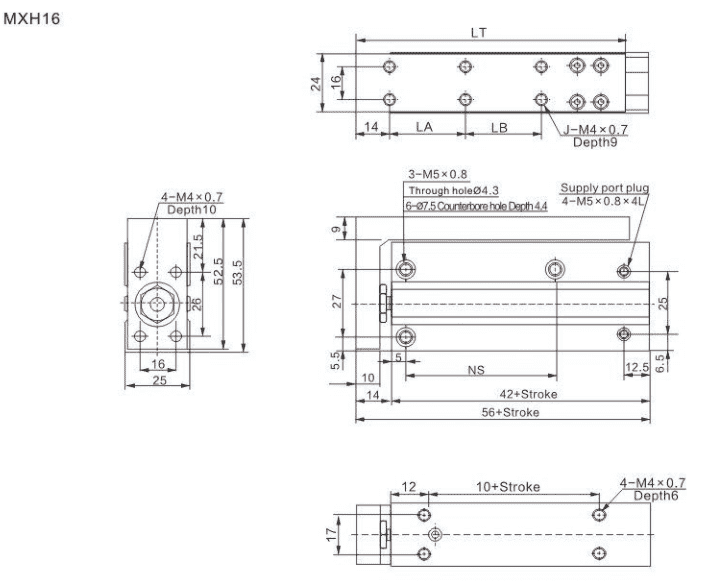

Stroke (mm) | J | LA | LB | LT | NS |
5 | 4 | 10 | - | 58 | 20 |
10 | 4 | 10 | - | 58 | 20 |
15 | 4 | 20 | - | 68 | 30 |
20 | 4 | 20 | - | 68 | 30 |
25 | 4 | 30 | - | 78 | 40 |
30 | 4 | 30 | - | 78 | 40 |
40 | 6 | 20 | 20 | 88 | 50 |
50 | 6 | 25 | 25 | 98 | 60 |
60 | 6 | 30 | 30 | 108 | 60 |

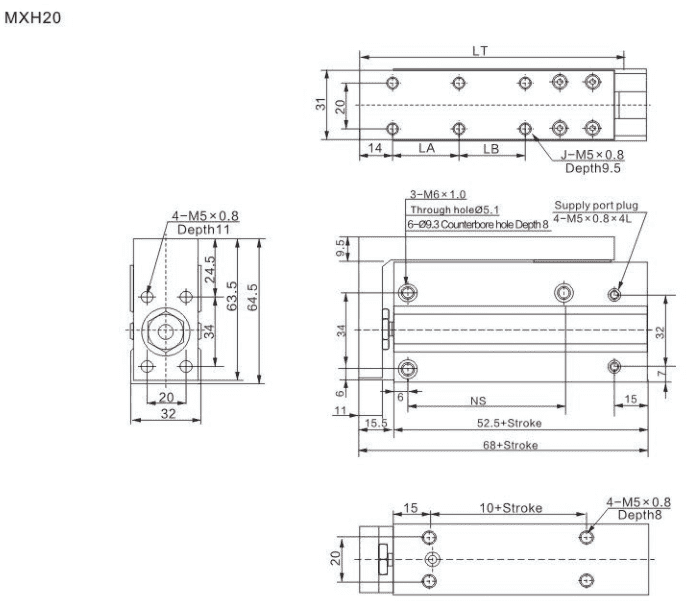

Stroke (mm) | J | LA | LB | LT | NS |
5 | 4 | 10 | - | 64 | 20 |
10 | 4 | 10 | - | 64 | 20 |
15 | 4 | 20 | - | 74 | 30 |
20 | 4 | 20 | - | 74 | 30 |
25 | 4 | 30 | - | 84 | 40 |
30 | 4 | 30 | - | 84 | 40 |
40 | 6 | 20 | 20 | 94 | 50 |
50 | 6 | 25 | 25 | 104 | 70 |
60 | 6 | 30 | 30 | 114 | 70 |
