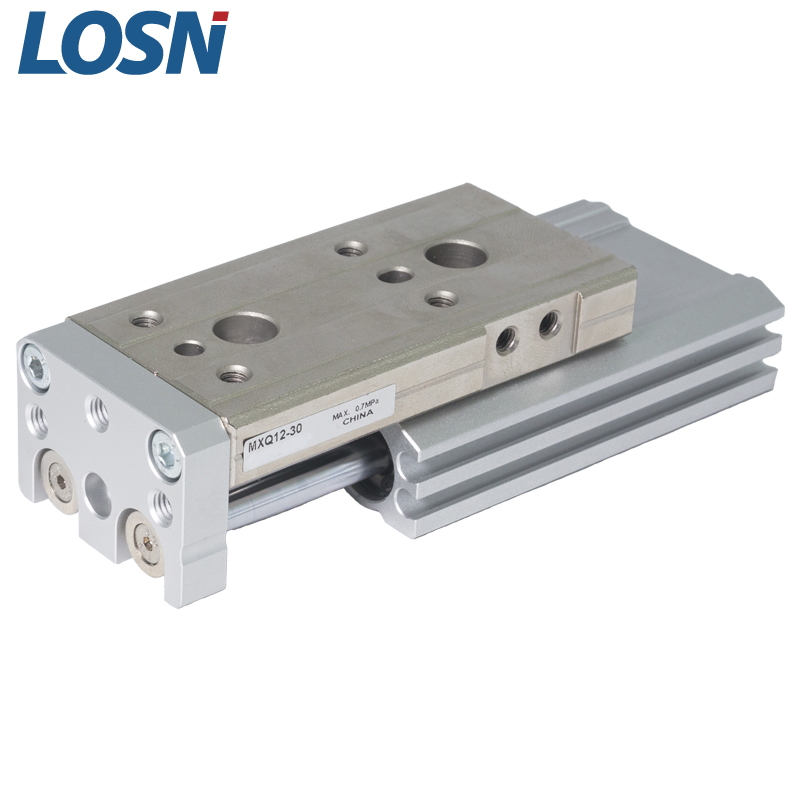

SMC Type Air Slide Table MXQ

Model NO.: MXQ

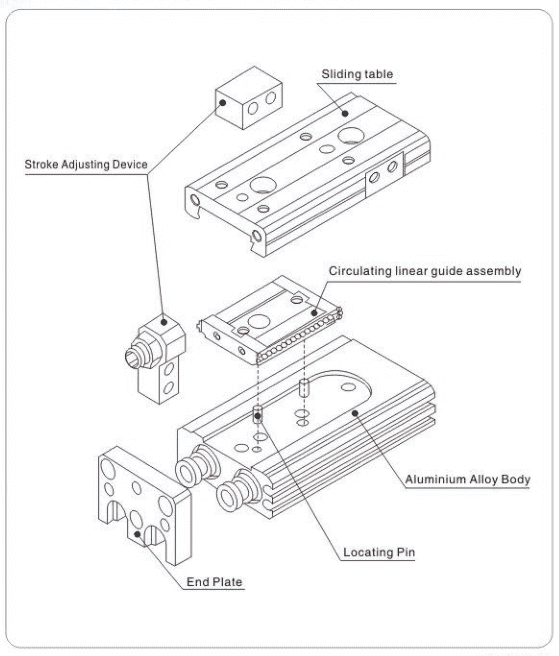

Integration of the guide rail and the table.
Uses a recirculating linear guide for high rigidity and high precision.
Air slide table for precision assembly processes.

Quantity:

Product Description

Overview
MXQ Series precision pneumatic slide tables are designed for precision assembly applications. Typical applications include positioning pallets on a conveyor and providing movement on the Z-axis in pick and place operations. A wide variety of options are available for this series including stroke adjusters, shock absorbers, buffer mechanisms, end lock and axial piping.

Compatible auto switches include D-A90, D-A93, D-A96, D-F9N, D-F9P, D-F9B, D-F9NW, D-F9PW and D-F9BW among others. Stroke Adjusters may be ordered as an accessory as well: MXS-(AS or AT) (bore size) For example, use part# MXS-AS6 for a extension end stroke adjuster for the 6mm bore slide tables.

Small, rugged, high precision
Combination of small cylinder and circular type linear guide rail Parallelism: 30m, vertical: 50m
Twin cylinder design, twice the output power
Big load torque
Adjustable Stroke (with stroke adjustment device)
Magnetic switches can be installed

Technical Specification

Model	MXQ 6	MXQ 8	MXQ 12	MXQ 16	MXQ 20	MXQ 25
Bore Size(mm)	φ6×2 (Equivalentφ8)	φ8×2 (Equivalentφ11)	φ12×2 (Equivalentφ17)	φ16×2 (Equivalentφ22)	φ20×2 (Equivalentφ28)	φ25×2 （Equivalentφ35）
Working Fluid	Air
Acting Mode	Double acting
Max.Working Pressure	0.7MPa
Min.Working Pressure	0.15MPa
Fluid Temperature	-10~+60℃ (No freezing)
Piston Speed	50~500mm/s(Metal stopper：50~200mm/s)
Buffering	Rubber cushion(Standard)、Shock absorber、Without(Metal stopper)
Stroke Tolerance(mm)	+10
Magnetic Switch Selection	D-A93
*Lubrication	No need
Port Size	M5x0.8				Rc1/8

Order Code

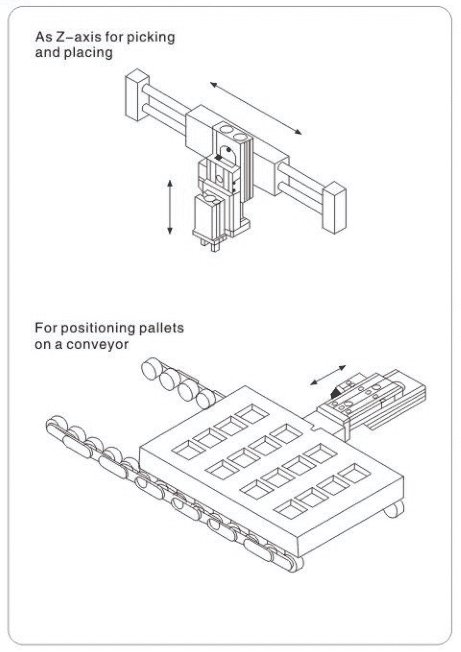

Application examples

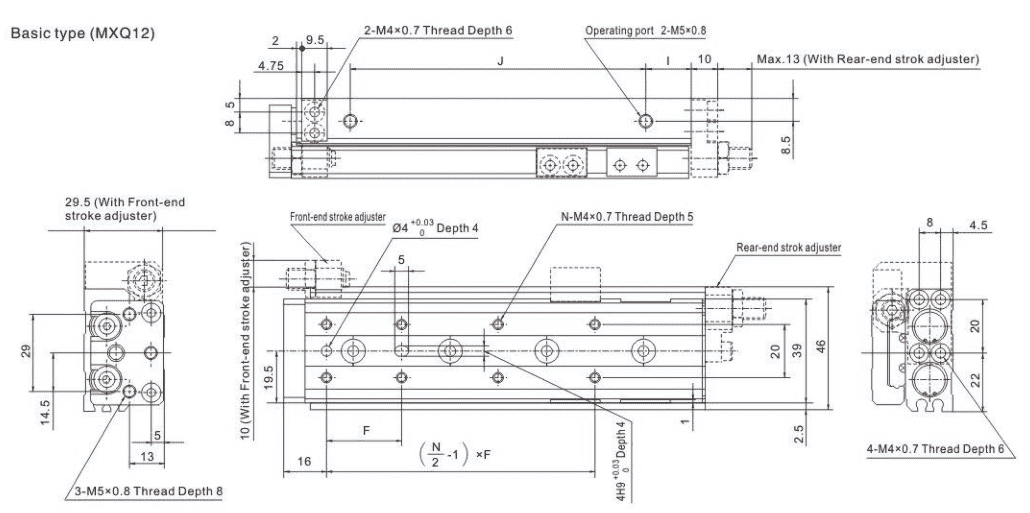

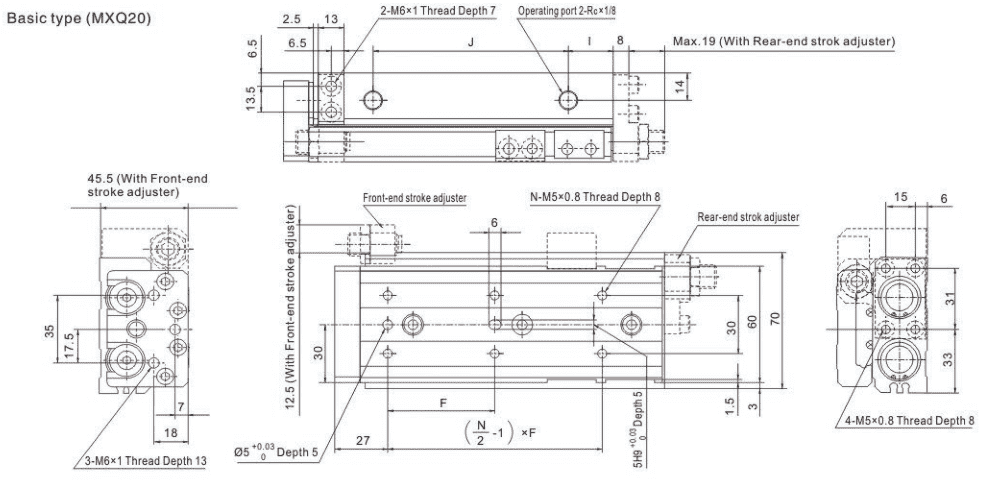

Combination of cylinder and table

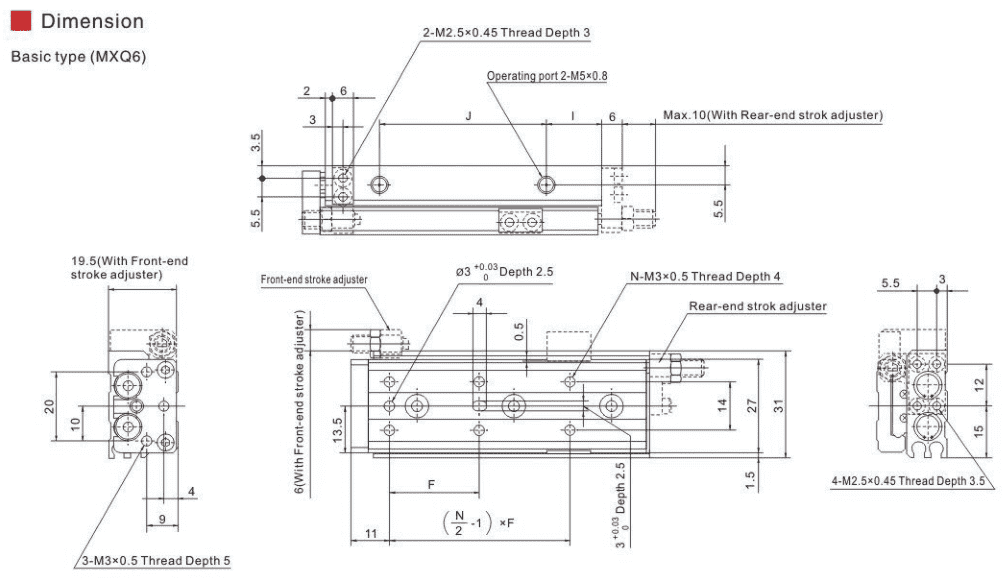

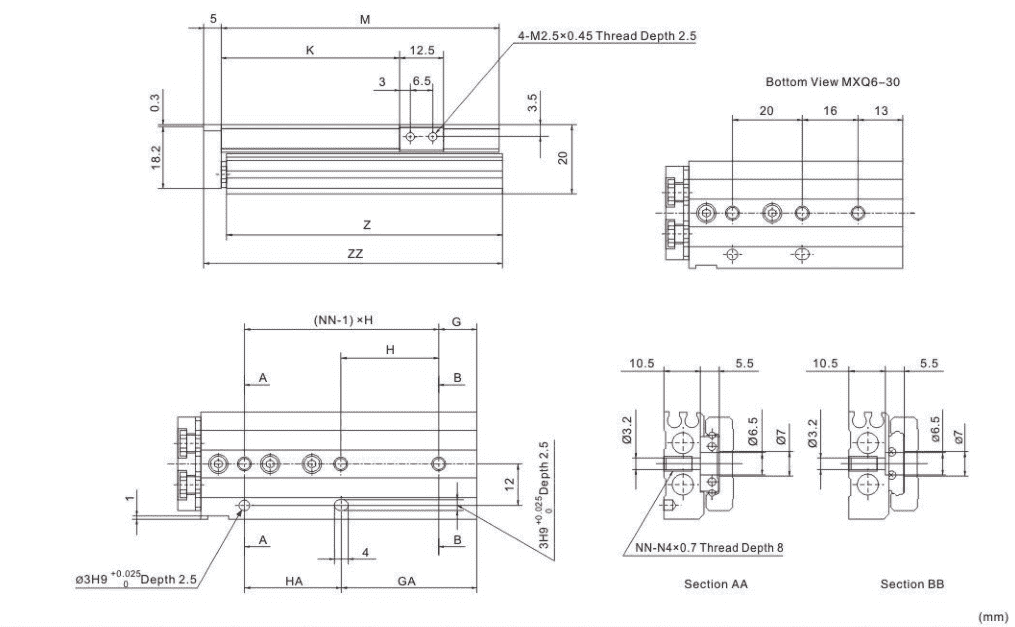

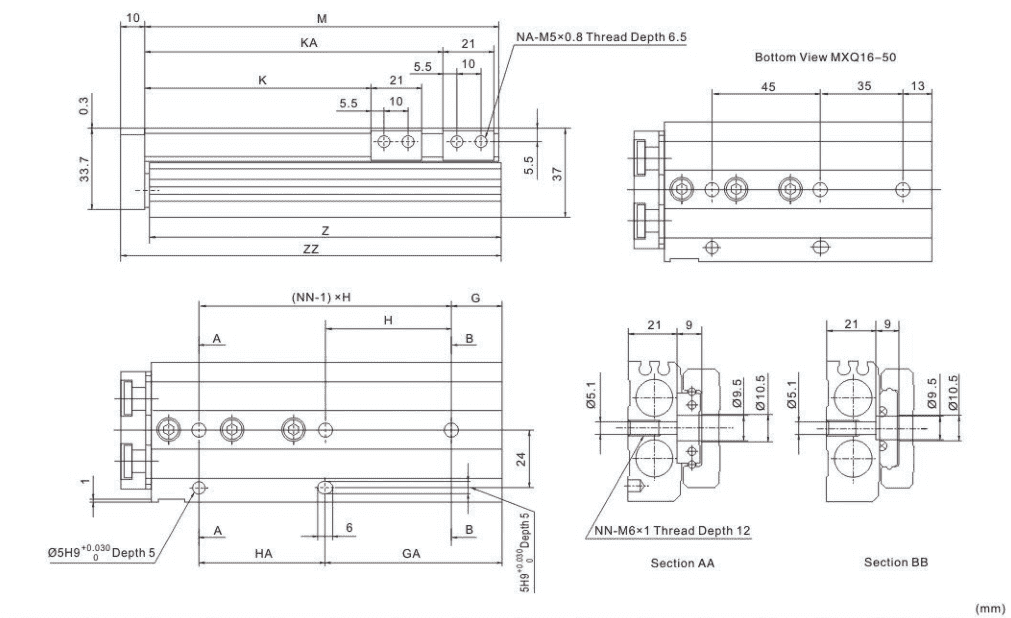

Model	F	N	G	H	NN	GA	HA	I	J	K	M	Z	ZZ
MXQ6-10	22	4	6	23	2	13	16	9	17	21.5	42	41.5	48
MXQ6-20	25	4	13	26	2	13	26	9	27	31.5	52	51.5	58
MXQ6-30	21	6	-	-	3	29	20	9	37	41.5	62	61.5	68
MXQ6-40	26	6	11	28	3	39	28	16	48	51.5	80	79.5	86
MXQ6-50	27	6	21	28	3	49	28	9	65	61.5	90	89.5	96

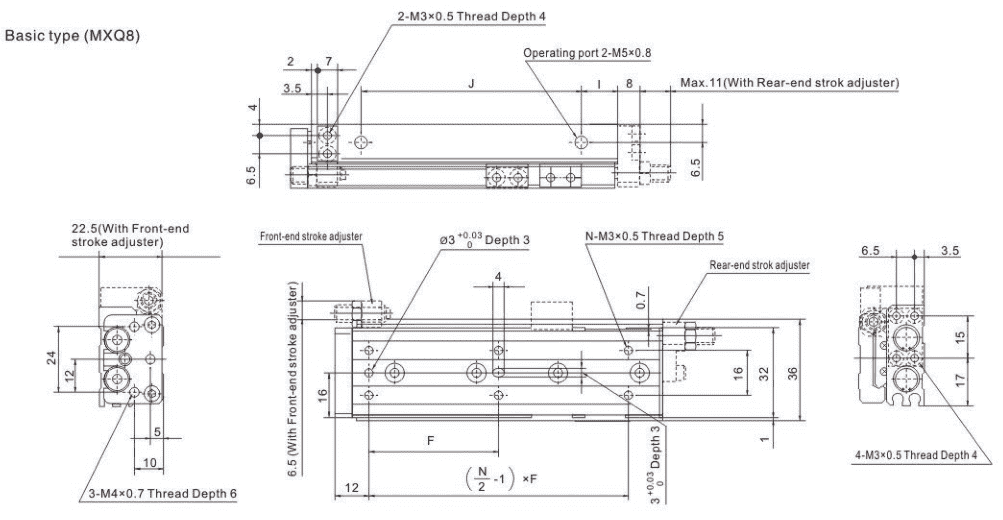

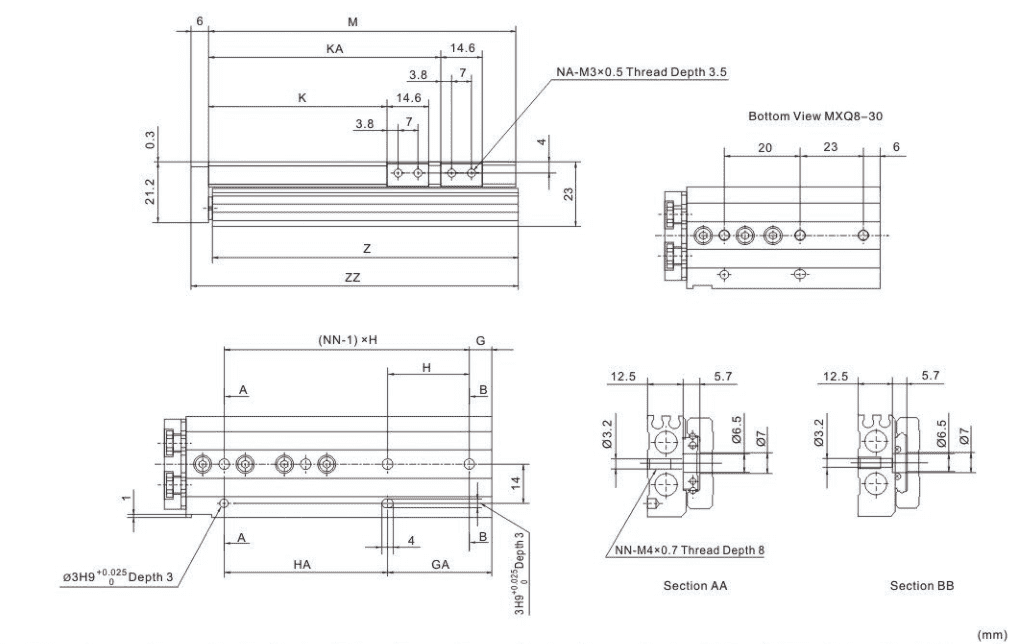

Model	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXQ8-10	25	4	7	25	2	13	19	11	17	23.5	-	4	46	45.6	53
MXQ8-20	25	4	14	28	2	14	28	10	28	33.5	-	4	56	55.5	63
MXQ8-30	26	6	-	-	3	29	27	12	40	43.5	-	4	70	69.5	77
MXQ8-40	32	6	8	31	3	39	31	14	52	53.5	-	4	84	83.5	91
MXQ8-50	46	6	8	29	4	37	58	13	78	63.5	82.5	8	109	108.5	116
MXQ8-75	50	6	31	30	4	61	60	12	105	88.5	112.5	8	135	134.5	142

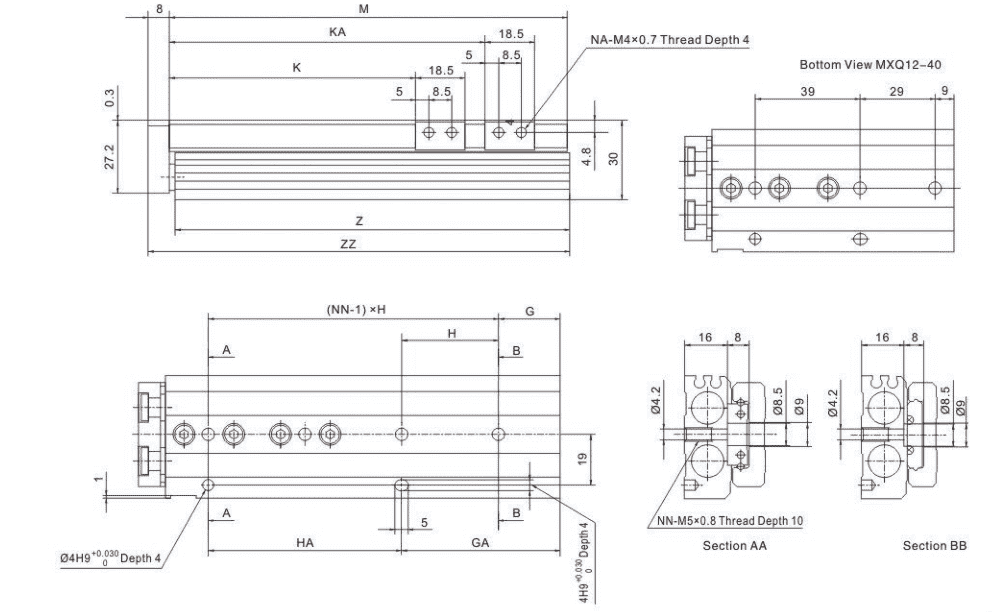

Model	F	N	G	H	NN	GA	HA	1	J	K	KA	NA	M	Z	ZZ
MXQ12-10	28	4	18	32	2	18	32	12	34	26.5	-	4	67	66	76
MXQ12-20	28	4	18	32	2	18	32	12	34	36.5	-	4	67	66	76
MXQ12-30	38	4	20	40	2	20	40	14	42	46.5	-	4	77	76	86
MXQ12-40	34	6	-	-	3	38	39	15	58	56.5	-	4	94	93	103
MXQ12-50	34	6	9	39	3	48	39	13	70	66.5	-	4	104	103	113
MXQ12-75	36	8	23	36	4	59	72	17	110	91.5	117.5	8	148	147	157
MXQ12-100	36	10	12	36	5	84	72	17	135	116.5	142.5	8	173	172	182

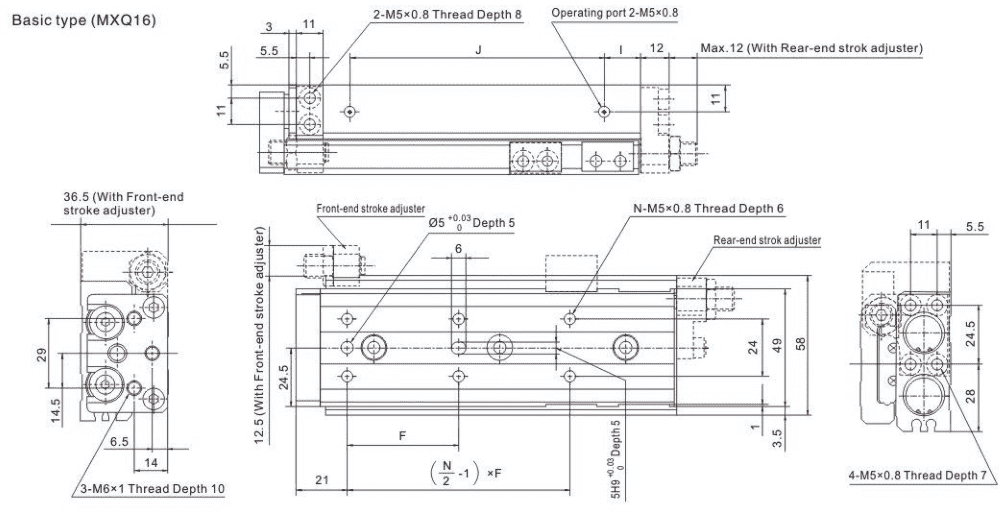

Model	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXQ16-10	38	4	18	39	2	18	39	12	40	28	-	4	78	77	89
MXQ16-20	38	4	18	39	2	18	39	12	40	38	-	4	78	77	89
MXQ16-30	48	4	19	48	2	19	48	12	50	48	-	4	88	87	99
MXQ16-40	58	4	19	58	2	19	58	12	63	58	-	4	98	97	109
MXQ16-50	40	6	-	-	3	48	45	20	68	68	91	8	114	113	125
MXQ16-75	46	6	21	52	3	73	52	15	105	93	123	8	146	145	157
MXQ16-100	44	8	36	44	4	80	88	18	145	118	166	8	189	188	200
MXQ16-125	44	10	17	44	5	105	88	23	165	143	191	8	214	213	225

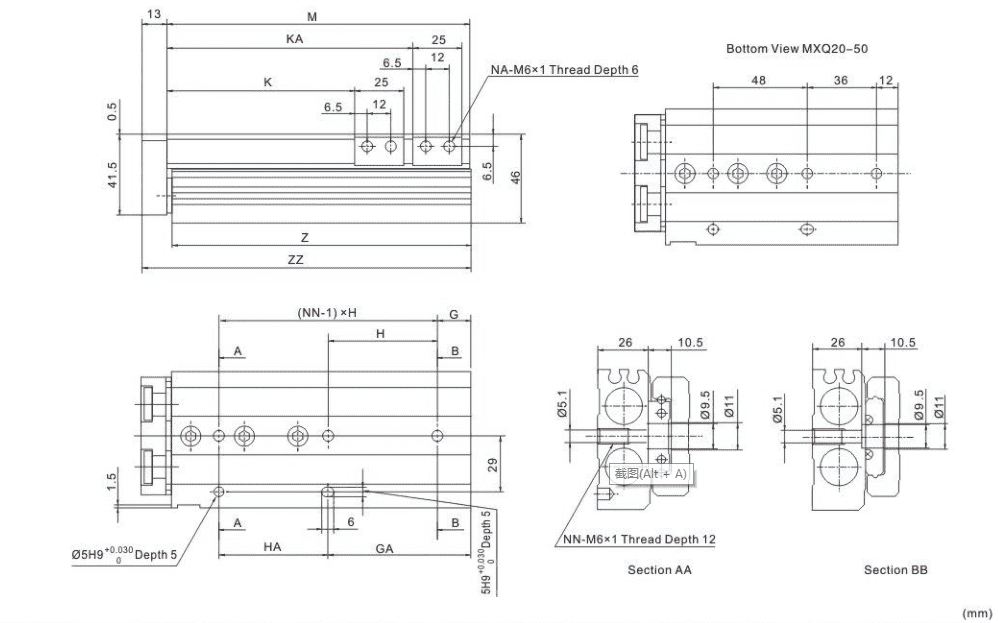

Model	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXQ20-10	45	4	22	46	2	18	50	16	46	31	-	4	94	92.5	108
MXQ20-20	40	4	22	46	2	18	50	16	46	41	-	4	94	92.5	108
MXQ20-30	48	4	22	46	2	18	50	16	46	51	-	4	94	92.5	108
MXQ20-40	58	4	22	56	2	22	56	16	56	61	-	4	104	102.5	118
MXQ20-50	42	6	-	-	3	48	48	18	72	71	-	4	122	120.5	136
MXQ20-75	55	6	17	56	3	73	56	23	100	96	126	8	155	153.5	169
MXQ20-100	50	8	18	56	4	74	112	25	155	121	183	8	212	210.5	226
MXQ20-125	55	8	37	59	4	96	118	18	190	146	211	8	240	238.5	254
MXQ20-150	62	8	56	62	4	118	124	21	215	171	239	8	268	266.5	282

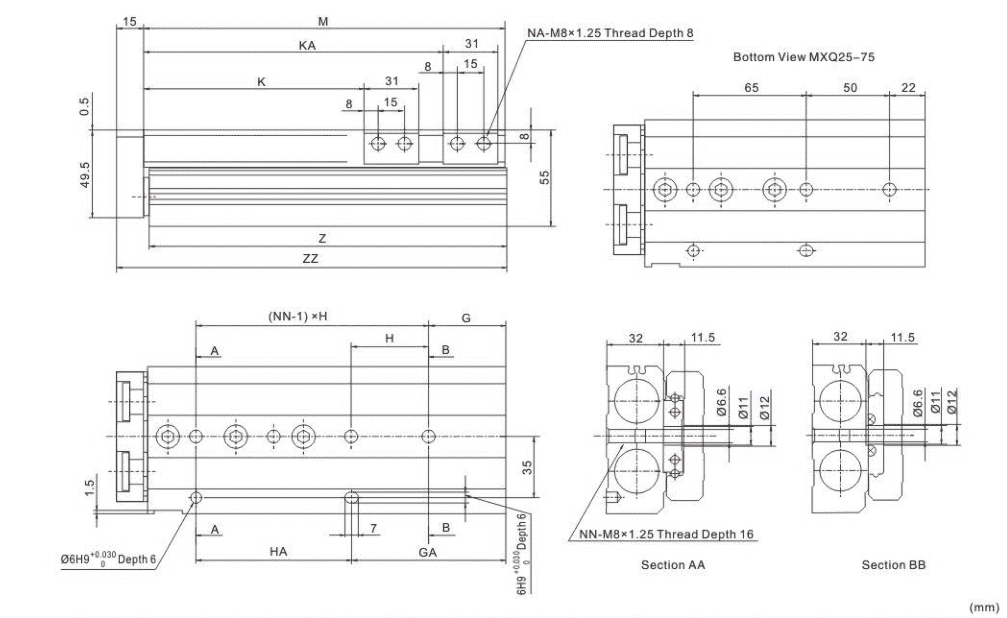

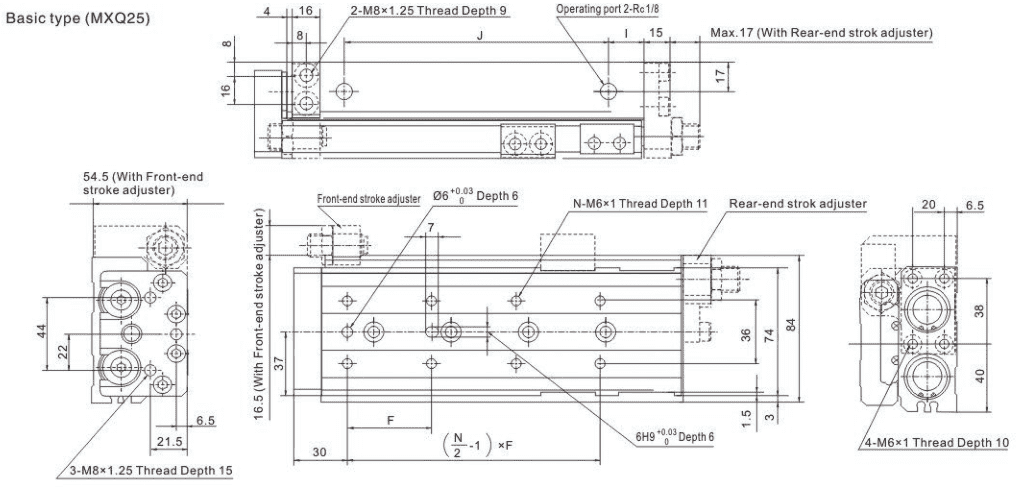

Model	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXQ25-10	55	4	23	55	2	23	55	16	56	35	-	4	107	105.5	123
MXQ25-20	46	4	23	55	2	23	55	16	56	45	-	4	107	105.5	123
MXQ25-30	55	4	23	55	2	23	55	16	56	55	-	4	107	105.5	123
MXQ25-40	65	4	23	65	2	23	65	16	66	65	-	4	117	115.5	133
MXQ25-50	75	4	32	80	2	32	80	16	90	75	-	4	141	139.5	157
MXQ25-75	60	6	-	-	3	72	65	31	100	100	-	4	166	164.5	182
MXQ25-100	48	8	44	44	4	88	88	20	150	125	170	8	205	203.5	221
MXQ25-125	60	8	31	66	4	97	132	18	205	150	223	8	258	256.5	274
MXQ25-150	65	8	56	66	4	122	132	18	230	175	248	8	283	281.5	299

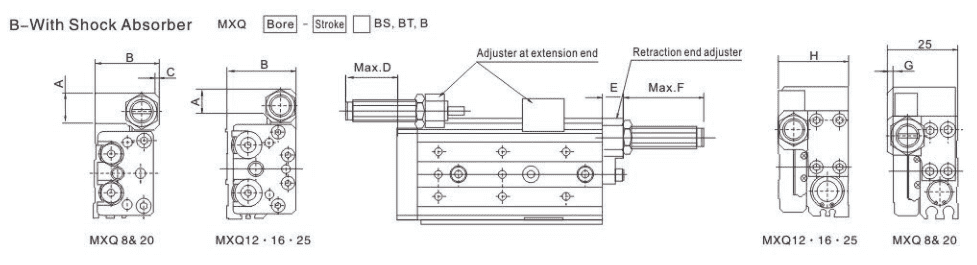

With Shock Absorber

Model	Adjustable Stroke Range		A	B	C	D	E	F	G	H
Model	Front	Rear	A	B	C	D	E	F	G	H
MXQ8	20	20	11.5	25	2	23	8	32	2	25
MXQ12	18	18	10	29.5	-	18	10	30	-	29.5
MXQ16	22	22	12.5	36.5	-	20	12	34	-	36.5
MXQ20	35	35	16	46.5	0.5	35	13	54	0.5	46.5
MXQ25	35	35	16.5	54.5	-	29	15	52	-	54.5

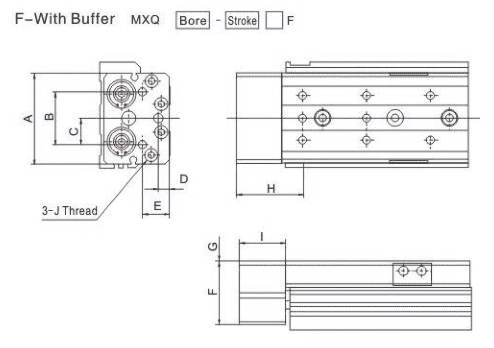

With Buffer

Model	A	B	C	D	E	F	G	H	I	J
MXQ6	30	16	8	4	8	19.2	0.3	28	22	M3*0.5Depth5
MXQ8	34	24	12	5	10	22.2	0.3	28.5	22.5	M4*0.7Depth6
MXQ12	43	29	14.5	5	13	29.2	0.3	37	29	M4*0.8Depth8
MXQ16	54	42	21	6.5	15.5	35.7	0.3	41	30	M6*1Depth10
MXQ20	60	35	17.5	7	18	42.5	0.5	44.5	30.5	M6*1Depth10
MXQ25	74	44	22	6.5	21.5	49.5	0.5	50	35	M8*1.25Depth15

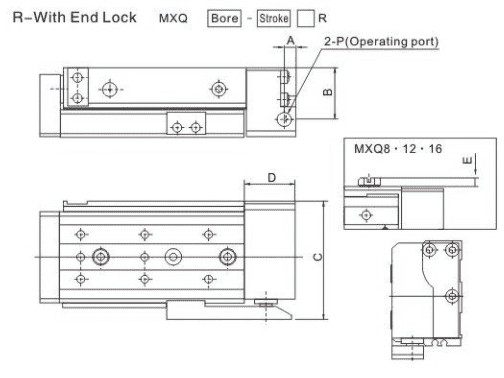

With End Lock

Model	A	B	C	D	E	P
MXQ8	4	17.5	40.5	16	3	M5*0.8
MXQ12	5	22	51	22	3	M5*0.8
MXQ16	6	29	65.5	25	3	M5*0.8
MXQ20	8	34	78.5	33	-	Rc1/8
MXQ25	8	40	94	37	-	Rc1/8

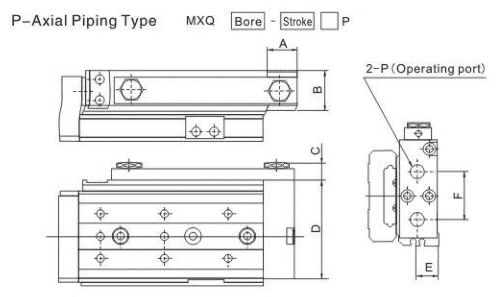

Axial Piping Type

Model	A	B	C	D	E	F	P
MXQ6	12	12.5	6.3	26	5.5	12	M5x0.8
MXQ8	12	14.5	6.3	31	6.5	15	M5x0.8
MXQ12	13	16.5	6.3	41	8.5	20	M5x0.8
MXQ16	14	21	6.3	52	11	26	M5x0.8
MXQ20	20	26	11.5	65	14	32	Rc1/8
MXQ25	20	32	11.5	79	17	40	Rc1/8
